vebrostatic ESD Quartz (Conductive)

1.0–2.0 mm

A decorative, quartz-based, epoxy flooring system, designed to immediately dispel electrostatic discharge in highly sensitive areas.

Meets EN 1081, EN 61340-4-1

Prevents fire and explosion risk from electrostatic charge

Excellent resistance to fuels, lubricants, solvents and other chemicals

Easy to clean, non-tainting and non-dusting finish

thickness

1.0–2.0 mm

FeRFA type

Type 5

temperature resistance

finish

Quartz

system design

primer

vebro EP Primer

0.30 kg/m²

copper tape

Self-adhesive copper tape

esd primer

vebro EP ESD Primer

0.18 kg/m²

binder

vebro EP ESD Quartz Binder

0.60 kg/m²

vebro Quartz Filler 0

0.36 kg/m²

broadcast

vebro EP ESD Coloured Quartz Blends

2.50 kg/m²

sealer

vebro UR ESD Seal (Clear Gloss)

0.45 kg/m²

technical properties

System Thickness	–	1.0–2.0 mm
FeRFA Type	BS 8204-6	Type 5
Fire Resistance	EN 13501-1	Bfl-s1
Resistance to Earth	EN 61340-4-5 / EN 1081 / EN 61340-4-1	<100 Volt 10⁶ Ω ≤10⁹ Ω (Rg) < 3.5 × 10⁷ Ω (Rs)
Compressive Strength	EN 196 / ASTM C 109	~78 N/mm²
Flexural Strength	EN 196 / ASTM C 109	40 N/mm²
Wear Resistance	EN ISO 5470-1	≤ 60 mg 1000 cycles (Taber Abrader CS10 wheel)
Shore D Hardness	EN ISO 868	80
Chemical Resistance	–	Resistant to a very wide range of chemicals.
Speed of Cure	–	Light Foot Traffic: 24 hours Full Chemical Cure: 5 days

Please note: The typical physical properties given above are derived from testing in a controlled laboratory environment at 20°C unless otherwise specified. Results derived from testing field applied samples may vary dependent upon site conditions. The slip resistance figures given above are affected by application techniques and prevailing site conditions. Slip resistance can reduce over time due to poor maintenance, general wear or surface contaminants. Good housekeeping practices should be observed. For a full technical profile, please refer to the data sheet for each product in the system design.

standard colours

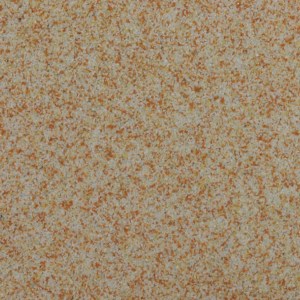

Beige

Blue

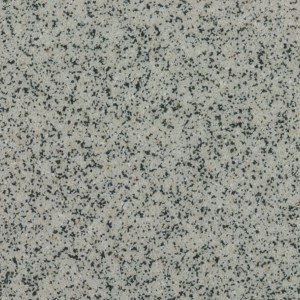

Light Grey

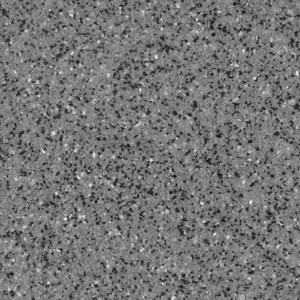

Mid Grey

Red

application suitability

Data centres
Server rooms
Laboratories
Industrial & manufacturing

don't see your specific area listed?

We don’t have room to list every area where vebrostatic ESD Quartz (Conductive) is suitable for installation.

Our team will be happy to discuss your project to ensure the most appropriate solution.
